| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Export Packing |
| Delivery Period: | 7~30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

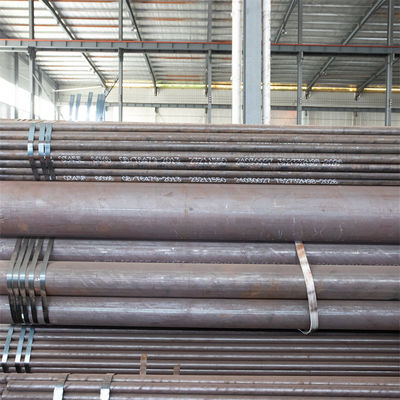

JIS G3454, JIS G3455, JIS G3456 Seamless Steel Pipes for Liquid Service:
JIS G3454, JIS G3455, and JIS G3456 are Japanese standard specifications for seamless steel pipes used for liquid service. These standards define the technical requirements for seamless pipes, ensuring their suitability for various liquid transportation applications. JIS G3454, JIS G3455, and JIS G3456 seamless steel pipes for liquid service are highly regarded for their reliability, durability, and excellent performance in liquid conveying systems.
Product Description:
JIS G3454, JIS G3455, and JIS G3456 seamless steel pipes for liquid service are manufactured from carbon steel or alloy steel. These pipes have a seamless construction, ensuring precise dimensions and smooth internal surfaces. They are available in different sizes and grades to meet specific requirements of liquid transportation applications, providing a seamless and efficient flow of liquids.
Product Parameters:
| Parameter | JIS G3454 | JIS G3455 | JIS G3456 |
|---|---|---|---|
| Size Range | 15.9 mm - 660.4 mm | 10 mm - 660.4 mm | 21.7 mm - 660.4 mm |
| Wall Thickness | 1 mm - 35 mm | 1 mm - 80 mm | 2 mm - 100 mm |
| Length | 4 m - 12 m | 4 m - 12 m | 4 m - 12 m |
| Steel Grade | STPG, STS, STPT, STPL | STPG, STS, STPT, STPL | STPG, STS, STPT, STPL |
| Outer Diameter Tolerance | ±0.5% max | ±0.5% max | ±0.5% max |
Mechanical Properties:
| Mechanical Property | STPG | STS | STPT | STPL |
|---|---|---|---|---|
| Tensile Strength | 370-550 MPa | 320-580 MPa | 370-620 MPa | 290-690 MPa |
| Yield Strength | 215 MPa min | 175 MPa min | 215 MPa min | 175 MPa min |
| Elongation | 30% min | 30% min | 30% min | 30% min |
Chemical Composition:
| Element | STPG Content | STS Content | STPT Content | STPL Content |
|---|---|---|---|---|
| Carbon (C) | 0.25% max | 0.25% max | 0.25% max | 0.25% max |
| Manganese (Mn) | 0.30-0.90% | 0.30-0.90% | 0.30-0.90% | 0.30-0.90% |
| Phosphorus (P) | 0.040% max | 0.040% max | 0.040% max | 0.040% max |
| Sulfur (S) | 0.040% max | 0.040% max | 0.040% max | 0.040% max |
Product Applications:
JIS G3454, JIS G3455, and JIS G3456 seamless steel pipes for liquid service find wide applications in various industries, including:
Oil and Gas Industry: These pipes are extensively used for the transportation of crude oil, natural gas, and other petroleum products, ensuring the efficient and safe delivery of energy resources.
Petrochemical Industry: JIS G3454, JIS G3455, and JIS G3456 pipes are employed for the transportation of various liquid chemicals, including acids, alkalis, and solvents, in petrochemical plants.
Power Generation: These pipes are utilized in power plants for the transportation of fluids, including steam and cooling water, in thermal and nuclear power generation systems.
Water and Wastewater Systems: JIS G3454, JIS G3455, and JIS G3456 pipes are used in water supply and wastewater systems, ensuring the reliable conveyance of potable water, irrigation water, and wastewater.
Product Advantages:
JIS G3454, JIS G3455, and JIS G3456 seamless steel pipes for liquid service offer several advantages, including:
High Strength: These pipes have excellent tensile strength and yield strength, enabling them towithstand the pressure encountered during liquid transportation.
Corrosion Resistance: The carbon steel or alloy steel composition and protective coatings on JIS G3454, JIS G3455, and JIS G3456 pipes provide resistance against corrosion, ensuring the longevity and integrity of liquid conveying systems.
Precise Dimensions: The seamless construction of these pipes ensures precise dimensions and smooth internal surfaces, facilitating efficient and uninterrupted flow of liquids.
Wide Size Range: JIS G3454, JIS G3455, and JIS G3456 pipes are available in a wide range of sizes and wall thicknesses, allowing flexibility in design and installation for various liquid transportation applications.
Video
Video
Video
Video
|
|
