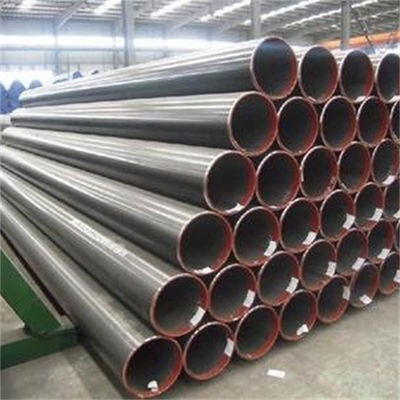

GB/T 3087 Seamless Steel Tubes For Low And Medium Pressure Boiler

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASTM/DIN/GB/EN/JIS
Document
Product Brochure PDF
Name:
Seamless Carbon Steel Pipes
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM/DIN/GB/EN/JIS
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

gb seamless steel pipe

,

gb seamless stainless steel pipe

,

boiler seamless steel pipe

Product Description

GB/T 3087 Seamless Steel Tubes for Low and Medium Pressure Boilers:

Product Description: GB/T 3087 Seamless Steel Tubes are designed to meet the specific requirements of low and medium pressure boiler systems. These tubes are manufactured to the Chinese national standard GB/T 3087, which dictates the standards for seamless steel tubes suitable for high-temperature and high-pressure applications, such as those found in boiler construction. The tubes are made from carbon steel and are characterized by their seamless structure, providing enhanced strength and reliability.

Product Parameter Specifications:

Parameter Specification Range Units
Outer Diameter Typically from 10mm to 325mm depending on the grade mm
Wall Thickness Varies with diameter; specific range per grade mm
Length Standard lengths available; custom lengths on request m
Tolerance As per GB/T 3087 standards for diameter and wall thickness -

Product Applications:

  1. Boiler Construction: Utilized in the construction of low and medium pressure boilers in power plants and industrial facilities.
  2. Heat Exchangers: Suitable for use in heat exchanger applications where high temperatures are involved.
  3. Steam and Water Pipelines: Used for transporting steam and water under pressure in various industrial processes.
  4. Pressure Vessels: Employed in the fabrication of pressure vessels and related equipment.

Types of GB/T 3087 Seamless Steel Tubes:

  • Grade 20: General-purpose carbon steel tubes for low pressure applications.
  • Grade 20G: Improved mechanical properties suitable for medium pressure applications.
  • Other Grades: May include higher strength grades depending on specific requirements.

Mechanical Properties:

Property Typical Range/Value for 20G Grade Units
Tensile Strength 415-655 MPa MPa
Yield Strength ≥ 245 MPa MPa
Elongation ≥ 24% (for grades ≤ 20) %
Reduction of Area ≥ 40% %

Chemical Composition:

Element Typical Range (%) for 20G Grade
C 0.18-0.24
Si ≤ 0.35
Mn 0.40-0.70
P ≤ 0.035
S ≤ 0.035



GB/T 3087 Seamless Steel Tubes For Low And Medium Pressure Boiler 0GB/T 3087 Seamless Steel Tubes For Low And Medium Pressure Boiler 1

Company Profile

GB/T 3087 Seamless Steel Tubes For Low And Medium Pressure Boiler 2

Factory Tour

GB/T 3087 Seamless Steel Tubes For Low And Medium Pressure Boiler 3

team introduction

GB/T 3087 Seamless Steel Tubes For Low And Medium Pressure Boiler 4

Applications

GB/T 3087 Seamless Steel Tubes For Low And Medium Pressure Boiler 5
