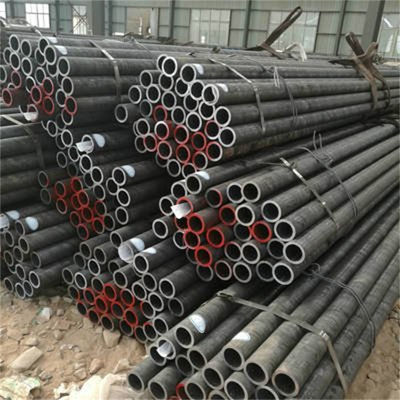

American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
Seamless Pipes Boiler Tubes
Document
Product Brochure PDF
Name:
Seamless Carbon Steel Pipes
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM A333 ASME SA333
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

boiler seamless steel pipe

,

boiler seamless stainless steel pipe

,

astm seamless steel pipe

Product Description

Product Description:

American Standard Carbon Steel Seamless Pipes, also known as Boiler Tubes, are precision-engineered to meet the stringent requirements of boiler and pressure vessel applications. These tubes are manufactured in compliance with American standards such as ASTM A106, ASTM A53, and ASME SA106, ensuring a high level of quality and reliability. They are seamless, which means they are produced without a weld, providing superior strength and integrity.

Advantages:

  1. Seamless Construction: Offers greater pressure tolerance and resistance to failure compared to welded pipes.
  2. Uniform Quality: Uniform wall thickness and material composition throughout the length of the tube.
  3. High Strength: Capable of withstanding high pressures and temperatures, essential for boiler applications.
  4. Longevity: Designed for long-term use with minimal maintenance, reducing lifecycle costs.
  5. Wide Range of Sizes: Available in various sizes and lengths to suit different boiler designs and requirements.

Product Parameter Table:

Category Parameter Typical Range/Value
Mechanical Properties Tensile Strength 415-690 MPa (ASTM A106 Grade B)
  Yield Strength ≥ 240 MPa (for nominal wall thickness ≤ 0.5 in)
    ≥ 205 MPa (for nominal wall thickness > 0.5 in)
  Elongation ≥ 20% (in 2 in or 50 mm length)
Chemical Composition Carbon (C) 0.29-0.36% (ASTM A106 Grade B)
  Manganese (Mn) 0.35-0.65%
  Phosphorus (P) ≤ 0.035%
  Sulfur (S) ≤ 0.035%
Diameter Tolerance Outer Diameter ± 1/16 in (±1.6 mm)
Wall Thickness Tolerance Wall Thickness ± 12.5% of nominal thickness or ± 0.005 in, whichever is greater

Applications:

  1. Boiler Tubes: Used extensively in the construction of steam boilers for power generation and industrial processes.
  2. Heat Exchangers: Ideal for use in shell and tube heat exchangers due to their high heat transfer efficiency.
  3. Pressure Vessels: Suitable for high-pressure vessels where strength and reliability are paramount.
  4. Oil and Gas Industry: Employed in pipelines and equipment that require high-pressure and temperature resistance.
  5. Chemical Processing: Used in chemical plants for the transportation of chemicals and other substances under pressure.



American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333 0American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333 1

Company Profile

American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333 2

Factory Tour

American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333 3

team introduction

American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333 4

Applications

American Standard Carbon Steel Seamless Pipes Boiler Tubes ASTM A333 ASME SA333 5
