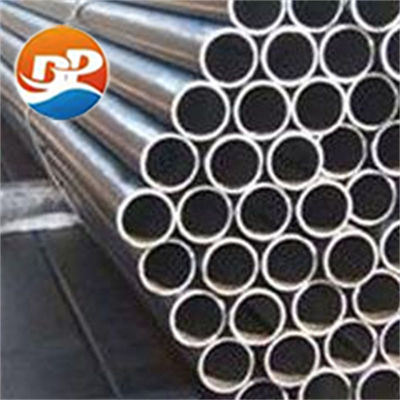

DIN 17175 15Mo3 Alloy Seamless Steel Pipe / Tubes Of Heat Resistant Steels

Products

High Pressure Boiler Steel Pipe

DIN 17175 15Mo3 Alloy Seamless Steel Pipe / Tubes Of Heat Resistant Steels

MOQ:	1
Price:	Negotiable
Standard Packaging:	Standard Export Packing
Delivery Period:	7~30 working days
Payment Method:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin

cangzhou

Brand Name

BaoYang

Certification

CE & ISO

Model Number

DIN 17175 15Mo3

Document

Name:

Seamless Alloy Steel Pipes

Process:

Hot Rolled Cold Rolled Cold Drawn

Standards:

DIN 17175 15Mo3

Material:

Alloy Steel Pipe

Wall Thickness:

1-30mm (0.04 Inch - 0.78 Inch)

Outer Diameter:

10-324mm

Processing Service:

Bending, Punching, Cutting

Usage:

Pipeline Transport, Oil/Gas Drilling, Machinery Industry

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Standard Export Packing

Delivery Time:

7~30 working days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union

Highlight:

15mo3 alloy seamless steel pipe

din alloy seamless pipe

din alloy seamless steel pipe

Product Description

DIN 17175 15Mo3 Alloy Seamless Steel Pipe/Tubes

1. Product Description: DIN 17175 15Mo3 Alloy Seamless Steel Pipe/Tubes are engineered for applications that demand high levels of heat resistance and mechanical strength. These pipes and tubes are manufactured from an alloy steel that is seamless, ensuring uniform wall thickness and superior structural integrity. The 15Mo3 grade is specifically designed to offer excellent creep resistance and good weldability, making it suitable for high-temperature applications.

2. Product Parameters:

Parameter	Description
Grade	DIN 17175 15Mo3
Material	Alloy Steel (Seamless)
Standard	DIN 17175
Size Range	Various diameters and wall thicknesses as per DIN 17175
Length	Standard lengths, customizable upon request
Ends	Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment	As-rolled, annealed, or normalized

3. Mechanical Properties:

Property	Typical Requirements
Tensile Strength	≥410 MPa (59,500 psi)
Yield Strength	≥255 MPa (37,000 psi)
Elongation	≥20% in 50 mm (2 in) or 4D, whichever is greater
Hardness	Varies depending on heat treatment

4. Chemical Composition:

Element	Typical Range (%)
Carbon	0.12 - 0.20
Manganese	≤1.00
Phosphorus	≤0.025
Sulfur	≤0.025
Silicon	≤0.50
Chromium	≤0.50
Molybdenum	≤0.50

5. Product Applications:

Boiler Tubes: Used for steam generation in high-pressure boilers.
Heat Exchangers: Ideal for use in heat exchangers operating under high pressure and temperature.
Superheater Tubes: Employed in superheater sections to raise steam temperature.
Pressure Vessels: Suitable for construction of high-pressure vessels and reactors.
Gas and Oil Industry: Utilized in pipelines and equipment for oil and natural gas transport in high-temperature environments.

DIN 17175 15Mo3 Alloy Seamless Steel Pipe / Tubes Of Heat Resistant Steels 0
