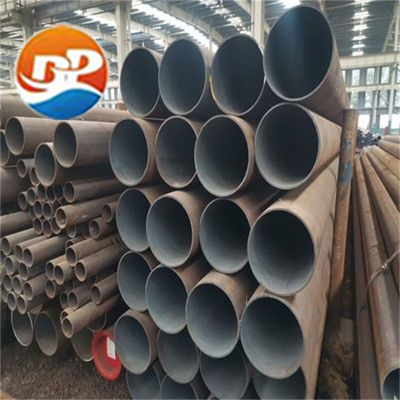

High Pressure Alloy Seamless Boiler Tubes GB/T5310 12Cr1MoVG

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
GB/T5310 12Cr1MoVG
Document
Product Brochure PDF
Name:
Seamless Alloy Steel Pipes
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
GB/T5310 12Cr1MoVG
Material:
Alloy Steel Pipe
Wall Thickness:
1-30mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
10-324mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

High Pressure seamless boiler tubes

,

seamless boiler tubes gb/t5310

,

12Cr1MoVG steel boiler tubes

Product Description

GB/T5310 12Cr1MoVG High Pressure Alloy Seamless Boiler Tubes

1. Product Description: GB/T5310 12Cr1MoVG High Pressure Alloy Seamless Boiler Tubes are engineered for high pressure boiler applications that demand superior heat resistance and mechanical strength. These tubes are manufactured from an alloy steel known for its excellent creep resistance and good weldability. The seamless construction of the 12Cr1MoVG tubes ensures uniform wall thickness and optimal structural integrity, making them ideal for critical boiler components.

2. Product Parameters:

Parameter Description
Grade GB/T5310 12Cr1MoVG
Material High Pressure Alloy Steel (Seamless)
Standard GB/T5310
Size Range Various diameters and wall thicknesses as per GB/T5310
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property Typical Requirements
Tensile Strength ≥440 MPa (64,000 psi)
Yield Strength ≥295 MPa (42,500 psi)
Elongation ≥20% in 50 mm (2 in) or 4D, whichever is greater
Hardness Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%)
Carbon 0.08 - 0.15
Chromium 0.40 - 0.70
Molybdenum 0.30 - 0.50
Vanadium 0.15 - 0.30
Manganese ≤1.00
Phosphorus ≤0.025
Sulfur ≤0.025

5. Product Applications:

  • Boiler Tubes: Used for steam generation in high-pressure boilers.
  • Superheater Tubes: Employed in superheater sections to raise steam temperature.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Pressure Vessels: Ideal for construction of high-pressure vessels and reactors in petrochemical and refining industries.

6. Product Advantages:

  • Seamless Construction: Provides a consistent material structure and eliminates potential seam-related failures.
  • High-Pressure Resistance: Alloy steel offers excellent resistance to high pressures and temperatures.
  • Creep Resistance: Designed to resist deformation under prolonged exposure to heat, critical in boiler applications.
  • Weldability: The 12Cr1MoVG grade has good weldability, facilitating easy integration into various systems.
  • Corrosion Resistance: Enhanced resistance to corrosion and oxidation due to the alloy content.

High Pressure Alloy Seamless Boiler Tubes GB/T5310 12Cr1MoVG 0High Pressure Alloy Seamless Boiler Tubes GB/T5310 12Cr1MoVG 1

Company Profile

High Pressure Alloy Seamless Boiler Tubes GB/T5310 12Cr1MoVG 2

Factory Tour

High Pressure Alloy Seamless Boiler Tubes GB/T5310 12Cr1MoVG 3

team introduction

High Pressure Alloy Seamless Boiler Tubes GB/T5310 12Cr1MoVG 4

Applications

High Pressure Alloy Seamless Boiler Tubes GB/T5310 12Cr1MoVG 5
