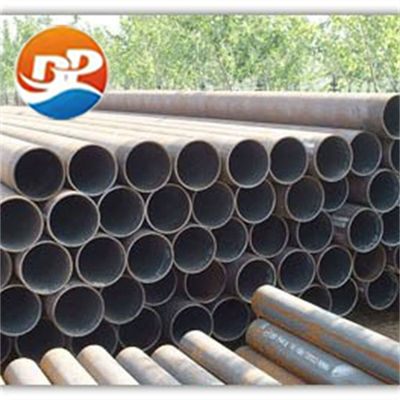

ASTM A333/ASME SA333 Gr.6 Seamless Alloy Steel Tube 10-324mm OD

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASTM A333/ASME SA333 Gr.6
Document
Product Brochure PDF
Name:
Seamless Alloy Steel Pipes
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM A333/ASME SA333 Gr.6
Material:
Alloy Steel Pipe
Wall Thickness:
1-30mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
10-324mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

sa333 gr.6 seamless alloy steel tube

,

astm seamless alloy steel tube

,

astm alloy steel seamless tubes

Product Description

ASTM A333/ASME SA333 Gr.6 Alloy Seamless Steel Tubes/Pipes: High-Performance Tubing for Chilled Applications

1. Product Description: ASTM A333/ASME SA333 Gr.6 Alloy Seamless Steel Tubes/Pipes are designed for applications requiring service at low temperatures. These tubes and pipes are manufactured from alloy steel that is seamless, ensuring uniform wall thickness and exceptional structural integrity. The Grade 6 specification denotes a particular level of mechanical properties suitable for cryogenic and freezing environments.

2. Product Parameters:

Parameter Description
Grade ASTM A333/ASME SA333 Gr.6
Material Alloy Steel (Seamless)
Standard ASTM A333, ASME SA333
Size Range Various diameters and wall thicknesses as per ASTM/ASME standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property Typical Requirements
Tensile Strength ≥415 MPa (60,000 psi)
Yield Strength ≥240 MPa (35,000 psi)
Elongation ≥20% in 50 mm (2 in) or 4D, whichever is greater
Hardness Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%)
Carbon 0.27 - 0.35
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.35

5. Product Applications:

  • Cryogenic Piping: Used for transporting liquefied gases and other cryogenic substances.
  • Refrigeration Systems: Ideal for systems that require low temperature operation.
  • Chemical Processing: Suitable for handling chemicals that require low-temperature storage and transport.
  • Oil and Gas Industry: Employed in pipelines and equipment for oil and natural gas exploration in cold regions.
  • Power Generation: Utilized in power plants for steam lines and other systems operating under low temperatures.

6. Product Advantages:

  • Seamless Construction: Provides a consistent material structure and eliminates potential seam-related failures.
  • Low-Temperature Service: Alloy steel composition ensures reliable performance in cryogenic conditions.
  • Pressure Resistance: Designed to withstand high internal pressures, essential for power generation and petrochemical applications.
  • Corrosion Resistance: Offers resistance to various environmental conditions common in low-temperature applications.
  • Long Service Life: Built to last with minimal maintenance in demanding environments.

ASTM A333/ASME SA333 Gr.6 Seamless Alloy Steel Tube 10-324mm OD 0ASTM A333/ASME SA333 Gr.6 Seamless Alloy Steel Tube 10-324mm OD 1

Company Profile

ASTM A333/ASME SA333 Gr.6 Seamless Alloy Steel Tube 10-324mm OD 2

Factory Tour

ASTM A333/ASME SA333 Gr.6 Seamless Alloy Steel Tube 10-324mm OD 3

team introduction

ASTM A333/ASME SA333 Gr.6 Seamless Alloy Steel Tube 10-324mm OD 4

Applications

ASTM A333/ASME SA333 Gr.6 Seamless Alloy Steel Tube 10-324mm OD 5
