ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASME SA106b SA106c
Document
Product Brochure PDF
Name:
Seamless Carbon Steel Tube
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASME SA106b SA106c
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

high pressure seamless steel tube

,

asme seamless steel tube

,

asme seamless carbon steel tube

Product Description

ASME SA106 Grade B and Grade C High Pressure Seamless Steel Boiler Tubes

1. Product Description: ASME SA106 Grade B and Grade C High Pressure Seamless Steel Boiler Tubes are premium-quality tubes designed for use in high-pressure boiler systems. These tubes are manufactured from carbon steel and are seamless, ensuring uniform wall thickness and superior structural integrity. The ASME SA106 standard specifies these tubes, which are categorized into different grades based on their mechanical properties and intended applications.

2. Product Parameters:

Parameter Description
Grades ASME SA106 Grade B and Grade C
Material Carbon Steel (Seamless)
Standard ASME SA106
Size Range Various diameters and wall thicknesses as per ASME SA106
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property ASME SA106 Grade B Requirement ASME SA106 Grade C Requirement
Tensile Strength ≥485 MPa (70,000 psi) ≥485 MPa (70,000 psi)
Yield Strength ≥240 MPa (35,000 psi) ≥310 MPa (45,000 psi)
Elongation ≥20% in 50 mm (2 in) ≥20% in 50 mm (2 in)
Hardness Varies depending on heat treatment Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%) for ASME SA106 Grades
Carbon 0.29 - 0.36
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.35

5. Product Uses:

  • Boiler Tubes: Utilized in power and industrial boilers for steam generation.
  • Superheater Tubes: Employed in the superheater sections of steam power plants.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Pressure Vessels: Ideal for construction of high-pressure vessels and reactors.
  • Refineries: Used in high-temperature pipelines and components within oil refineries.

6. Product Grade Standards:

  • ASME SA106 Grade B: This grade is suitable for moderate pressure applications and offers balanced mechanical properties.
  • ASME SA106 Grade C: Offers higher tensile and yield strength compared to Grade B, making it suitable for more demanding high-pressure applications.

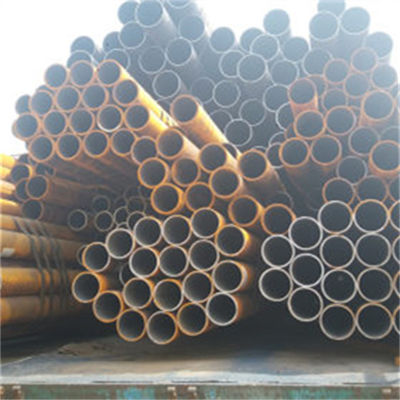

Product Image

ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube 0
Company Profile

ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube 1

Factory Tour

ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube 2

team introduction

ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube 3

Applications

ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube 4
