ASTM A192 A179 A178 Pipe Carbon Steel Seamless Tube For High Pressure

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASTM A192 A179 A178
Document
Product Brochure PDF
Name:
Seamless Carbon Steel Tube
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM/ASME/DIN/En
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

a178 pipe carbon steel seamless

,

astm pipe carbon steel seamless

,

astm carbon steel seamless steel pipe

Product Description

ASTM A192, A179, A178 Carbon Seamless Tubes for High Pressure

1. Product Description: ASTM A192, A179, and A178 Carbon Seamless Tubes are high-pressure steam service tubes designed for use in boiler and superheater applications. These tubes are manufactured from carbon steel and are seamless, ensuring a uniform wall thickness and exceptional resistance to internal pressures. The seamless construction also provides enhanced durability and reliability, making these tubes ideal for critical high-pressure applications.

2. Product Parameters:

Parameter Description
Grades ASTM A192, A179, A178
Material Carbon Steel (Seamless)
Standard ASTM A192, ASTM A179, ASTM A178
Size Range Various diameters and wall thicknesses as per ASTM standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property ASTM A192/A179/A178 Requirement
Tensile Strength ≥415 MPa (60,000 psi) for all grades
Yield Strength ≥240 MPa (35,000 psi) for A192, varies for A179 and A178 based on specific product forms
Elongation ≥20% in 50 mm (2 in) for A192, varies for A179 and A178 based on product forms
Hardness Varies depending on heat treatment and specific grade

4. Chemical Composition:

Element Typical Range (%) for ASTM A192/A179/A178
Carbon 0.15 - 0.30
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.35

5. Product Uses:

  • Boiler Tubes: Used in power and industrial boilers for steam generation.
  • Superheater Tubes: Employed in superheater sections of steam power plants to raise steam temperature.
  • Heat Exchangers: Suitable for use in shell and tube heat exchangers operating under high pressure.
  • Pressure Vessels: Utilized in the construction of high-pressure vessels and reactors.
  • Refineries: Ideal for high-temperature and high-pressure pipelines in oil refineries.

6. Product Grade Standards:

  • ASTM A192: Specifies requirements for seamless carbon steel boiler tubes for high-pressure service.
  • ASTM A179: Covers minimum-wall-thickness, seamless cold-drawn low-carbon steel boiler and superheater tubes.
  • ASTM A178: Specifies the requirements for electric-resistance-welded (ERW) carbon steel boiler and superheater tubes.

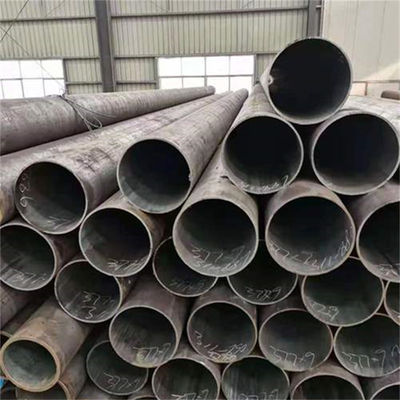

Product Image

ASTM A192 A179 A178 Pipe Carbon Steel Seamless Tube For High Pressure 0
Company Profile

ASTM A192 A179 A178 Pipe Carbon Steel Seamless Tube For High Pressure 1

Factory Tour

ASTM A192 A179 A178 Pipe Carbon Steel Seamless Tube For High Pressure 2

team introduction

ASTM A192 A179 A178 Pipe Carbon Steel Seamless Tube For High Pressure 3

Applications

ASTM A192 A179 A178 Pipe Carbon Steel Seamless Tube For High Pressure 4
