ASTM A210 / ASME SA210 210C Seamless Carbon Steel Tube 6-2500mm OD

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASTM A210 / ASME SA210 210C
Document
Product Brochure PDF
Name:
Seamless Carbon Steel Tube
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM A210 / ASME SA210 210C
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

210c seamless carbon steel tube

,

astm seamless steel tube

,

astm seamless carbon steel tube

Product Description

ASTM A210/ASME SA210 Grade 210C Carbon Steel Seamless Tubes: High-Temperature and Pressure Resistance

1. Product Description: ASTM A210/ASME SA210 Grade 210C Carbon Steel Seamless Tubes are designed for applications requiring high-temperature and pressure resistance. These tubes are manufactured from carbon steel and are seamless, providing a uniform wall thickness and exceptional structural integrity. The 'C' grade indicates a specific level of mechanical properties that make these tubes suitable for use in boiler, superheater, and heat exchanger applications.

2. Product Parameters:

Parameter Description
Grade ASTM A210/ASME SA210 Grade 210C
Material Carbon Steel (Seamless)
Standard ASTM A210, ASME SA210
Size Range Various diameters and wall thicknesses as per ASTM/ASME standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property Requirement
Tensile Strength ≥415 MPa (60,000 psi)
Yield Strength ≥240 MPa (35,000 psi)
Elongation ≥20% in 50 mm (2 in) or 4D, whichever is greater
Hardness Typically Rockwell B 90 max for tubes ≤ 2 in (50 mm) in diameter

4. Chemical Composition:

Element Typical Range (%)
Carbon 0.15 - 0.30
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.35

5. Product Uses:

  • Boiler Tubes: Used in power and industrial boilers for high-temperature steam generation.
  • Superheater Tubes: Employed in the superheater sections of steam power plants to further raise steam temperature.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Pressure Vessels: Utilized in the construction of high-pressure vessels and reactors.
  • Refineries: Ideal for high-temperature pipelines and components in oil refineries.

6. Product Grade Standards:

  • ASTM A210: Specifies the requirements for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.
  • ASME SA210: Provides similar specifications and is referenced in the context of mechanical engineering and boiler and pressure vessel codes.

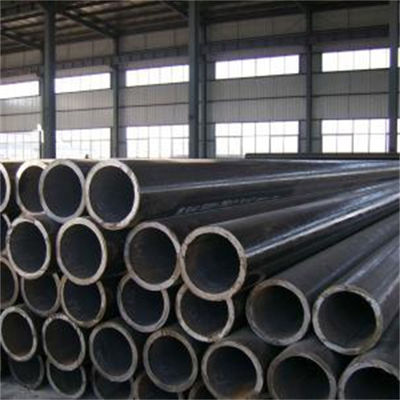

Product Image

ASTM A210 / ASME SA210 210C Seamless Carbon Steel Tube 6-2500mm OD 0
Company Profile

ASTM A210 / ASME SA210 210C Seamless Carbon Steel Tube 6-2500mm OD 1

Factory Tour

ASTM A210 / ASME SA210 210C Seamless Carbon Steel Tube 6-2500mm OD 2

team introduction

ASTM A210 / ASME SA210 210C Seamless Carbon Steel Tube 6-2500mm OD 3

Applications

ASTM A210 / ASME SA210 210C Seamless Carbon Steel Tube 6-2500mm OD 4
