ASTM A106 ASME SA106 ASTM A53 GR.B Seamless Carbon Steel Tube

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASTM A106 ASME SA106 ASTM A53 GR.B
Document
Product Brochure PDF
Name:
Seamless Carbon Steel Tube
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM/ASME/DIN/En
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

a53 gr.b seamless carbon steel tube

,

astm seamless steel tube

,

astm seamless carbon steel tube

Product Description

Seamless Carbon Steel Tubes ASTM A106/ASME SA106 and ASTM A53 Grade B

1. Product Description: ASTM A106/ASME SA106 and ASTM A53 Grade B Seamless Carbon Steel Tubes are premium-quality steel tubes engineered for high-temperature applications and general-purpose usage, respectively. These tubes are manufactured from carbon steel and are seamless, ensuring a uniform wall thickness and superior structural integrity. They are widely recognized for their strength, durability, and resistance to various service conditions.

2. Product Parameters:

Parameter Description
Grades ASTM A106/ASME SA106 (for high-temperature service), ASTM A53 Grade B (for general service)
Material Seamless Carbon Steel
Standard ASTM A106, ASME SA106, ASTM A53
Size Range Various diameters and wall thicknesses as per ASTM standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property ASTM A106/ASME SA106 Requirement ASTM A53 Grade B Requirement
Tensile Strength ≥415 MPa (60,000 psi) ≥415 MPa (60,000 psi)
Yield Strength ≥240 MPa (35,000 psi) ≥310 MPa (45,000 psi)
Elongation ≥20% in 50 mm (2 in) ≥20% in 50 mm (2 in)
Hardness Varies depending on heat treatment Varies depending on heat treatment

4. Chemical Composition:

Element ASTM A106/ASME SA106 Range (%) ASTM A53 Grade B Range (%)
Carbon 0.29 - 0.36 0.29 - 0.33
Manganese 0.35 - 0.60 0.35 - 0.60
Phosphorus ≤ 0.025 ≤ 0.025
Sulfur ≤ 0.025 ≤ 0.025
Silicon ≤ 0.35 ≤ 0.35

5. Product Uses:

  • Oil and Gas Industry: Used for transporting oil, natural gas, and other fluids.
  • Boiler and Superheater Tubes: Suitable for high-temperature applications in boilers.
  • Structural and Mechanical Components: Employed in various structural and mechanical components due to their strength.
  • Piping Systems: Ideal for use in industrial piping systems for water, steam, and other fluids.
  • Pressure Vessels: Utilized in the construction of pressure vessels and heat exchangers.

6. Product Grade Standards:

  • ASTM A106/ASME SA106: These grades are specified for seamless carbon steel tubes suitable for high-temperature service.
  • ASTM A53 Grade B: This grade is intended for general-purpose applications where regular strength and good ductility are required.

Product Image

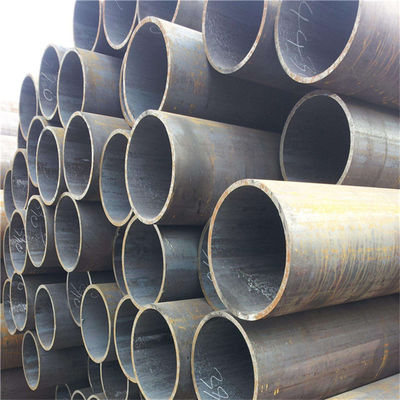

ASTM A106 ASME SA106 ASTM A53 GR.B Seamless Carbon Steel Tube 0
Company Profile

ASTM A106 ASME SA106 ASTM A53 GR.B Seamless Carbon Steel Tube 1

Factory Tour

ASTM A106 ASME SA106 ASTM A53 GR.B Seamless Carbon Steel Tube 2

team introduction

ASTM A106 ASME SA106 ASTM A53 GR.B Seamless Carbon Steel Tube 3

Applications

ASTM A106 ASME SA106 ASTM A53 GR.B Seamless Carbon Steel Tube 4
Tags:

carbon steel round tube,

carbon steel pipe seamless,

carbon steel seamless steel pipe
