SA210M GR.C American Standard Carbon Steel Seamless Pipe

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
SA210M GR.C
Document
Product Brochure PDF
Name:
American Standard Steel Pipes
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM/ASME/DIN/En
Material:
A53 Gr/A GRB, 106 GR.A GR.B
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

sa210m a53 carbon steel pipe

,

sa210m carbon steel seamless pipe

,

gr.c a53 carbon steel pipe

Product Description

SA210M Gr.C American Standard Carbon Steel Seamless Pipe

1. Product Description: SA210M Gr.C American Standard Carbon Steel Seamless Pipes are engineered to provide exceptional strength and durability for high-temperature applications. These pipes are manufactured from carbon steel and are seamless, ensuring a uniform wall thickness and optimal resistance to pressure and wear. The 'Gr.C' designation indicates the grade, which is known for its good creep-rupture strength, making it suitable for use in boiler and superheater applications.

2. Product Parameters:

Parameter Description
Grade SA210M Gr.C
Material Carbon Steel (Seamless)
Standard ASME SA210M
Size Range Various diameters and wall thicknesses
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Product Advantages:

  • Seamless Construction: Offers uniform wall thickness and enhanced resistance to pressure.
  • High-Temperature Resistance: Designed for service in high-temperature environments.
  • Creep-Rupture Strength: The 'Gr.C' grade offers improved resistance to creep and rupture at elevated temperatures.
  • Long Service Life: Built to last with minimal maintenance in demanding conditions.
  • Corrosion Resistance: Offers resistance to corrosion, reducing the need for frequent replacements.

4. Product Uses:

  • Boiler Tubes: Used in the construction of industrial and power boilers.
  • Superheater Tubes: Employed in the superheater sections of steam power plants.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Petrochemical Industry: Utilized in pipelines and equipment within the petrochemical industry.

5. Executing Standards:

  • ASME SA210M: The pipes are manufactured in compliance with the ASME SA210M standard, which specifies the requirements for seamless ferritic and austenitic-ferritic alloy-steel boiler, superheater, and heat-exchanger tubes.

6. Mechanical Properties:

Property Requirement
Tensile Strength ≥415 MPa (60,000 psi)
Yield Strength ≥240 MPa (35,000 psi)
Elongation ≥20% in 50 mm (2 in) or 4D, whichever is greater
Hardness Typically Rockwell B 90 max for pipes ≤ 2 in (50 mm) in diameter

7. Chemical Composition:

Element Typical Range (%)
Carbon 0.10 - 0.20
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.50

Conclusion: SA210M Gr.C American Standard Carbon Steel Seamless Pipes are engineered for applications that demand high strength and durability, particularly in high-temperature environments. Their seamless design and adherence to ASME SA210M standards make them suitable for a wide range of applications in the power generation and petrochemical industries. These pipes offer a reliable and cost-effective solution for critical applications where safety and efficiency are paramount.

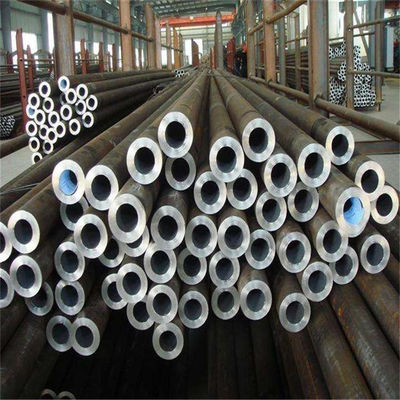

Product Image

SA210M GR.C American Standard Carbon Steel Seamless Pipe 0
Company Profile

SA210M GR.C American Standard Carbon Steel Seamless Pipe 1

Factory Tour

SA210M GR.C American Standard Carbon Steel Seamless Pipe 2

team introduction

SA210M GR.C American Standard Carbon Steel Seamless Pipe 3

Applications

SA210M GR.C American Standard Carbon Steel Seamless Pipe 4
