ASTM A106 ASME SA106 ASTM GR.B A53 Seamless Pipe American Standard

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASTM A106 ASME SA106 ASTM A53 GR.B
Document
Product Brochure PDF
Name:
ASTM A106 ASME SA106 ASTM A53 GR.B Steel Pipes
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM/ASME/DIN/En
Material:
A53 Gr/A GRB, 106 GR.A GR.B
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Casing Tube Boiler Pipe
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

astm a53 seamless pipe

,

astm a106b seamless pipe

,

asme a53 seamless pipe

Product Description

ASTM A106/ASME SA106 and ASTM A53 Grade B - American Standard Carbon Steel Pipes

1. Product Description: American Standard Carbon Steel Pipes, including ASTM A106 and ASME SA106, as well as ASTM A53 Grade B, are widely used in various industrial applications due to their strength and versatility. These pipes are manufactured from carbon steel and are available in both seamless and welded (ERW - Electric Resistance Welded) forms. They are designed to meet the specifications of the American Society for Testing and Materials (ASTM) and the American Society of Mechanical Engineers (ASME).

2. Product Parameters:

Parameter Description
Grades ASTM A106/ASME SA106 (Seamless), ASTM A53 Grade B (Seamless and Welded)
Material Carbon Steel
Standard ASTM A106, ASME SA106, ASTM A53
Size Range Various diameters and wall thicknesses as per ASTM standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, normalized, or annealed

3. Product Advantages:

  • Uniform Quality: Consistent material properties throughout the length of the pipe.
  • High Strength: Capable of withstanding high pressures and loads.
  • Versatility: Available in seamless and welded options to suit different applications.
  • Cost-Effective: Offers a balance of performance and affordability.
  • Corrosion Resistance: Adequate resistance to corrosion for many industrial environments.

4. Product Uses:

  • Oil and Gas Industry: Used for transporting oil, gas, and other fluids in pipelines.
  • Structural Applications: Employed as structural components in construction projects.
  • Mechanical Equipment: Suitable for manufacturing various mechanical equipment.
  • Piping Systems: Ideal for use in industrial piping systems for water, steam, and other fluids.
  • Pressure Vessels: Utilized in the construction of pressure vessels and boilers.

5. Executing Standards:

  • ASTM A106: Specifies the requirements for seamless carbon steel pipes for high-temperature service.
  • ASME SA106: Similar to ASTM A106, used in the context of mechanical engineering.
  • ASTM A53: Covers both seamless and welded carbon steel pipes, suitable for mechanical and pressure applications.

6. Mechanical Properties:

Property ASTM A106/ASME SA106 Requirement ASTM A53 Grade B Requirement
Tensile Strength ≥415 MPa (60,000 psi) ≥415 MPa (60,000 psi)
Yield Strength ≥240 MPa (35,000 psi) ≥310 MPa (45,000 psi)
Elongation ≥20% in 50 mm (2 in) ≥20% in 50 mm (2 in)
Hardness Varies depending on heat treatment Varies depending on heat treatment

7. Chemical Composition:

Element ASTM A106/ASME SA106 Range (%) ASTM A53 Grade B Range (%)
Carbon 0.29 - 0.36 0.29 - 0.36
Manganese 0.40 - 0.60 0.40 - 0.60
Phosphorus ≤ 0.035 ≤ 0.035
Sulfur ≤ 0.035 ≤ 0.035
Silicon ≤ 0.35 ≤ 0.35

Conclusion: ASTM A106/ASME SA106 and ASTM A53 Grade B American Standard Carbon Steel Pipes are engineered to provide a reliable and cost-effective solution for a variety of high-temperature and pressure applications. Their adherence to ASTM and ASME standards ensures uniform quality and performance. These pipes are suitable for use in the oil and gas industry, construction, mechanical equipment, piping systems, and pressure vessels, offering a versatile option for many industrial needs.

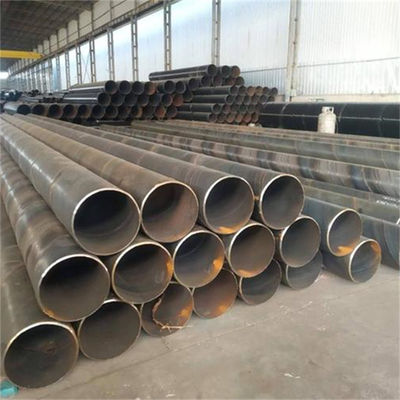

Product Image

ASTM A106 ASME SA106 ASTM GR.B A53 Seamless Pipe American Standard 0
Company Profile

ASTM A106 ASME SA106 ASTM GR.B A53 Seamless Pipe American Standard 1

Factory Tour

ASTM A106 ASME SA106 ASTM GR.B A53 Seamless Pipe American Standard 2

team introduction

ASTM A106 ASME SA106 ASTM GR.B A53 Seamless Pipe American Standard 3

Applications

ASTM A106 ASME SA106 ASTM GR.B A53 Seamless Pipe American Standard 4
