SA210M GR.C Carbon Steel Seamless Pipe High Pressure Boiler Pipe

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
SA210M GR.C
Document
Product Brochure PDF
Name:
SA210M GR.C High Pressure Boiler Pipe
Process:
Hot-Rolled
Standards:
ASTM/ASME/DIN/En
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
13.7mm-609.6mm
Processing Service:
Bending, Punching, Cutting
Usage:
Boiler Pipe, Hydraulic/Automobile Pipe
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

gr.c carbon steel seamless pipe

,

sa210m gr.c carbon steel seamless pipe

,

sa210m high pressure boiler pipe

Product Description

SA210M Gr.C Carbon Steel Seamless High Pressure Boiler Pipes

1. Product Description:

SA210M Gr.C Carbon Steel Seamless High Pressure Boiler Pipes are designed for use in high-pressure boiler systems where reliability and durability are paramount. These pipes are manufactured from carbon steel and are seamless, meaning they are formed from a single piece of steel without any welded joints. The seamless construction provides superior strength and resistance to pressure compared to welded pipes.

2. Product Parameters:

Parameter Description
Grade SA210M Gr.C
Material Carbon Steel (Seamless)
Standard ASME SA210M
Size Range Various diameters and wall thicknesses
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment Normally supplied in the as-rolled condition

3. Product Advantages:

  • Seamless Construction: Provides uniform wall thickness and eliminates potential leak points.
  • High Pressure Rating: Capable of withstanding high pressures in boiler applications.
  • Thermal Shock Resistance: Designed to handle rapid changes in temperature.
  • Long Service Life: Built to last with minimal maintenance in demanding conditions.
  • Corrosion Resistance: Offers good resistance to corrosion, reducing the need for frequent replacements.

4. Product Uses:

  • Boiler Tubes: Used in the construction of high-pressure boilers in power plants.
  • Superheater and Reheater Tubes: Employed in superheater and reheater sections of steam power plants.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Refinery Equipment: Utilized in pipelines and equipment within oil refineries.

5. Executing Standards:

  • ASME SA210M: The pipes are manufactured in compliance with the ASME SA210M standard, which specifies the requirements for seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes.

6. Mechanical Properties:

Property Typical Values
Tensile Strength ≥415 MPa (60,000 psi)
Yield Strength ≥240 MPa (35,000 psi)
Elongation ≥20% in 50 mm (2 in) for pipes ≤ 76 mm (3 in) in diameter
Hardness Rockwell B 90 maximum for pipes ≤ 2 in (50 mm) in diameter

7. Chemical Composition:

Element Typical Range (%)
Carbon 0.15 - 0.30
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.50

Conclusion: SA210M Gr.C Carbon Steel Seamless High Pressure Boiler Pipes are engineered to meet the rigorous demands of high-pressure boiler systems. Their seamless design, combined with their mechanical and chemical properties, ensures that these pipes provide a reliable and durable solution for critical applications in the power generation and petrochemical industries. Adherence to ASME SA210M standards guarantees quality and performance, making these pipes a preferred choice for high-pressure boiler applications.

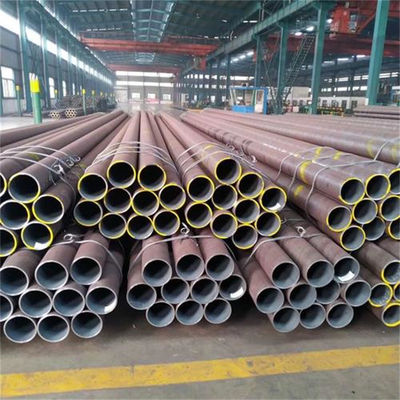

Product Image

SA210M GR.C Carbon Steel Seamless Pipe High Pressure Boiler Pipe 0

Company Profile

SA210M GR.C Carbon Steel Seamless Pipe High Pressure Boiler Pipe 1

Factory Tour

SA210M GR.C Carbon Steel Seamless Pipe High Pressure Boiler Pipe 2

team introduction

SA210M GR.C Carbon Steel Seamless Pipe High Pressure Boiler Pipe 3

Applications

SA210M GR.C Carbon Steel Seamless Pipe High Pressure Boiler Pipe 4
