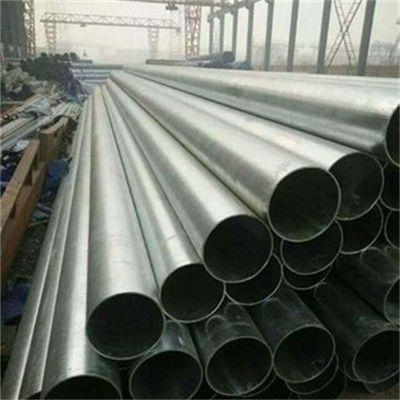

API 5L X70 Seamless Api Carbon Steel Pipe / seamless pipeline

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
API 5L X70
Document
Product Brochure PDF
Name:
Seamless Alloy Steel Pipes
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
API 5L X70
Material:
Alloy Steel Pipe
Wall Thickness:
1-30mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
10-324mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

5L X70 api carbon steel pipe

,

Seamless api carbon steel pipe

,

API 5L seamless pipeline

Product Description

API 5L X70 Seamless Steel Line Pipe/Tubes: High-Performance Tubing for Challenging Pipelines

1. Product Description: API 5L X70 Seamless Steel Line Pipe/Tubes are premium-grade steel tubes designed for use in demanding pipeline applications. These tubes are manufactured from seamless steel billets, ensuring uniform wall thickness and superior structural integrity. The X70 grade indicates a minimum yield strength of 70 ksi (483 MPa), making these pipes suitable for high-pressure and high-temperature environments.

2. Product Parameters:

Parameter Description
Grade API 5L X70
Material Seamless Carbon and Alloy Steel
Standard API 5L
Size Range Various diameters and wall thicknesses as per API 5L standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property Typical Requirements
Tensile Strength ≥535 MPa (77,000 psi)
Yield Strength ≥483 MPa (70,000 psi)
Elongation ≥20% in 50 mm (2 in) or 4D, whichever is greater
Hardness Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%)
Carbon 0.23 - 0.32
Manganese 1.00 - 1.60
Phosphorus ≤0.025
Sulfur ≤0.025
Silicon ≤0.35

5. Product Applications:

  • Oil and Gas Industry: Ideal for transporting oil, gas, and water in high-pressure pipelines.
  • Pressure Vessels: Suitable for construction of high-pressure vessels and reactors.
  • Heat Exchangers: Employed in heat exchangers operating under high pressure and temperature.
  • Refineries: Utilized in pipelines and equipment for oil refining processes.
  • Chemical Processing Plants: Used for handling corrosive and high-temperature fluids.

6. Product Advantages:

  • Seamless Construction: Offers a consistent material structure and eliminates potential seam-related failures.
  • High-Strength Alloy: Provides excellent resistance to high pressures and temperatures.
  • Corrosion Resistance: The carbon and alloy steel material offers inherent resistance to many corrosive substances.
  • Versatility: Available in various sizes and lengths to meet diverse pipeline specifications.
  • Long Service Life: Built to last with minimal maintenance in harsh environments.

API 5L X70 Seamless Api Carbon Steel Pipe / seamless pipeline 0

API 5L X70 Seamless Api Carbon Steel Pipe / seamless pipeline 1

Company Profile

API 5L X70 Seamless Api Carbon Steel Pipe / seamless pipeline 2

Factory Tour

API 5L X70 Seamless Api Carbon Steel Pipe / seamless pipeline 3

team introduction

API 5L X70 Seamless Api Carbon Steel Pipe / seamless pipeline 4

Applications

API 5L X70 Seamless Api Carbon Steel Pipe / seamless pipeline 5
