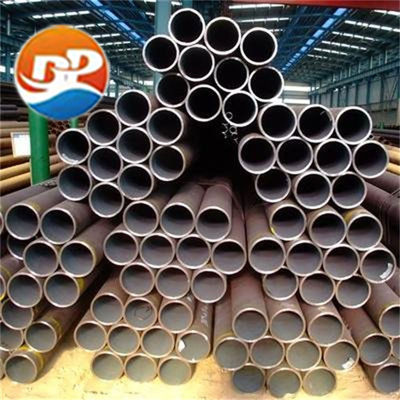

JIS G3464 Low Temperature Carbon Seamless Steel Pipe Cold Rolled Cold Drawn

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
EN 10216-5
Document
Product Brochure PDF
Name:
Seamless Carbon Steel Pipes
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
EN 10216-5
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

jis g3464 carbon seamless steel pipe

,

jis g3464 pipe carbon steel seamless

,

cold drawn carbon seamless steel pipe

Product Description

JIS G3464 Low-Temperature Seamless Carbon Steel Pipes

JIS G3464 Steel Tubes for Low Temperature Service are steel tubes used for exchanging heat at exceptionally low temperatures, such as in heat exchangers and condensers. These tubes are specified by the Japanese industrial standard and are designed to withstand freezing temperatures. The tubes undergo different heat treatments based on their class, including normalizing, tempering, quenching, and tempering. They have specific chemical compositions and mechanical properties, including tensile strength, yield point, and elongation.

Heat Treatment


Symbol of class Heat treatment
STBL 380 Normalizing or normalizing and successive tempering
STBL 450
STBL 690 Double normalizing and successive tempering or quenching and tempering


Chemical composition


Symbol of
class

 chemical composition %
C Si Mn P S Nil
STBL 380 0.25 max 0.35 max 1.35 max 0.035 max 0.035 max -
STBL 450 0.18 max 0.10-0.35 0.30-0.60 0.030 max 0.030 max 3.20-3.80
STBL 690 0.13 max 0.10-0.35 0.90 max 0.030 max 0.030 max 8.50-9.50


Mechanical properties


Symbol of class Tensile strength(N/mm²)

Yield point or proof stress
(N/mm²)

 Elongation %

Outside
diameter 20mm or
over

outside
diameter10mm or over to and excl 20mm

outside
diameter under 10mm

No.11 test
piece No.12
test piece

No.11 test
piece

No.11 test
piece
STBL 380 382 min 206 min 35 min 30 min 27 min
STBL 450 451 min 245 min 30 min 25 min 22 min
STBL 690 686 min 520 min 21 min 16 min 13 min


Advantages:

  1. Low-Temperature Performance: JIS G3464 low-temperature seamless carbon steel pipes exhibit excellent performance at low temperatures, ensuring reliable operation and structural integrity in cold environments.
  2. High Strength: These pipes have high tensile strength and good impact resistance, allowing them to withstand the stresses and pressures associated with low-temperature conditions.
  3. Corrosion Resistance: The carbon steel material used in JIS G3464 pipes is often alloyed with other elements to enhance its corrosion resistance, making it suitable for various low-temperature applications.
  4. Seamless Construction: The seamless manufacturing process ensures uniformity, consistency, and enhanced mechanical properties of the pipes. Seamless pipes also have a smooth interior surface, reducing flow resistance and minimizing the risk of corrosion.

Applications:

  1. Heat Exchangers: JIS G3464 low-temperature seamless carbon steel pipes are commonly used in heat exchangers, which are devices used for transferring heat between two fluids at different temperatures. These pipes provide reliable and efficient heat transfer in low-temperature environments.
  2. Condensers: These pipes are also used in condensers, which are devices that convert vapor into liquid by removing heat. JIS G3464 pipes are suitable for condenser applications that operate at low temperatures.
  3. Low-Temperature Pipelines: These pipes are used in low-temperature pipelines for transporting fluids in industries such as petrochemical, chemical, and power generation. They ensure the safe and efficient flow of fluids in cold environments.
  4. Refrigeration Systems: JIS G3464 low-temperature seamless carbon steel pipes find application in refrigeration systems, such as in refrigeration units, cold storage facilities, and air conditioning systems.

JIS G3464 Low Temperature Carbon Seamless Steel Pipe Cold Rolled Cold Drawn 0JIS G3464 Low Temperature Carbon Seamless Steel Pipe Cold Rolled Cold Drawn 1

Company Profile

JIS G3464 Low Temperature Carbon Seamless Steel Pipe Cold Rolled Cold Drawn 2

Factory Tour

JIS G3464 Low Temperature Carbon Seamless Steel Pipe Cold Rolled Cold Drawn 3

team introduction

JIS G3464 Low Temperature Carbon Seamless Steel Pipe Cold Rolled Cold Drawn 4

Applications

JIS G3464 Low Temperature Carbon Seamless Steel Pipe Cold Rolled Cold Drawn 5
