En10216 2 P235gh P265gh Seamless Carbon Steel Boiler Pipe / Cs Smls Pipe

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
En10216 2 P235gh P265gh
Document
Product Brochure PDF
Name:
High Pressure Boiler Steel Pipe
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
En10216 2 P235gh P265gh
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

p235gh cs smls pipe

,

p235gh carbon steel boiler pipe

,

p265gh cs smls pipe

Product Description

EN10216-2 P235GH and P265GH Seamless Carbon Steel Boiler Pipes: High-Quality Solutions for Industrial Boiler Systems

1. Product Description: EN10216-2 P235GH and P265GH Seamless Carbon Steel Boiler Pipes are designed for use in industrial boiler systems where high levels of safety, reliability, and durability are required. These pipes are manufactured from carbon steel and are seamless, ensuring uniform wall thickness and superior mechanical properties. The 'GH' designation indicates that these pipes have been heat-treated to provide good creep-rupture strength, making them suitable for high-temperature applications.

2. Product Parameters:

Parameter Description
Standards EN10216-2
Grades P235GH and P265GH
Material Seamless Carbon Steel
Size Range Various diameters and wall thicknesses as per EN10216-2
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property P235GH Requirement P265GH Requirement
Tensile Strength ≥410 MPa ≥450 MPa
Yield Strength ≥235 MPa (at 20°C) ≥265 MPa (at 20°C)
Elongation ≥20% ≥20%
Hardness Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%) for P235GH Typical Range (%) for P265GH
Carbon 0.10 - 0.20 0.10 - 0.20
Manganese ≤1.00 ≤1.00
Phosphorus ≤0.025 ≤0.025
Sulfur ≤0.025 ≤0.025
Silicon ≤0.50 ≤0.50
Chromium - ≤0.50
Nickel - ≤0.50

5. Product Uses:

  • Boiler Tubes: Used for transporting water, steam, and other fluids in high-pressure boilers.
  • Superheater and Reheater Tubes: Employed in the superheater and reheater sections of steam power plants.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Refinery Equipment: Utilized in pipelines and equipment within oil refineries.

6. Product Grade Standards:

  • EN10216-2: The pipes are manufactured in compliance with the European Standard EN10216-2, which specifies the technical delivery conditions for seamless steel tubes for pressure purposes.

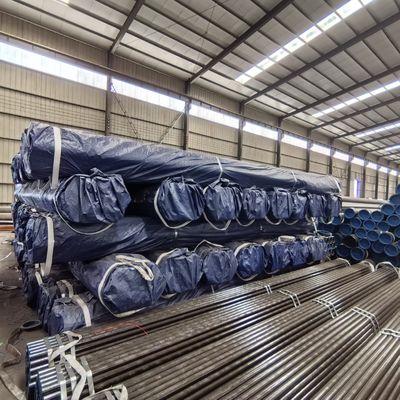

Product Image

En10216 2 P235gh P265gh Seamless Carbon Steel Boiler Pipe / Cs Smls Pipe 0

En10216 2 P235gh P265gh Seamless Carbon Steel Boiler Pipe / Cs Smls Pipe 1En10216 2 P235gh P265gh Seamless Carbon Steel Boiler Pipe / Cs Smls Pipe 2

Company Profile

En10216 2 P235gh P265gh Seamless Carbon Steel Boiler Pipe / Cs Smls Pipe 3

Factory Tour

En10216 2 P235gh P265gh Seamless Carbon Steel Boiler Pipe / Cs Smls Pipe 4

team introduction

En10216 2 P235gh P265gh Seamless Carbon Steel Boiler Pipe / Cs Smls Pipe 5

Applications

En10216 2 P235gh P265gh Seamless Carbon Steel Boiler Pipe / Cs Smls Pipe 6
