ASME SA106b SA106c High Pressure Boiler Steel Pipe Tube / Cs Smls Pipe

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASME SA106b SA106c
Document
Product Brochure PDF
Name:
High Pressure Boiler Steel Pipe
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASME SA106b SA106c
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

sa106c high pressure boiler steel pipe

,

sa106b cs smls pipe

,

sa106b high pressure boiler steel pipe

Product Description

ASME SA106 Grade B and Grade C High Pressure Seamless Boiler Steel Tubes

1. Product Description: ASME SA106 Grade B and Grade C High Pressure Seamless Boiler Steel Tubes are designed for use in high-pressure boiler systems where reliability and safety are paramount. These tubes are manufactured from carbon steel and are seamless, providing uniform wall thickness and excellent mechanical properties. The distinction between Grade B and Grade C lies in their respective mechanical property requirements, with Grade C offering higher strength for more demanding applications.

2. Product Parameters:

Parameter Description
Grades ASME SA106 Grade B and Grade C
Material Carbon Steel (Seamless)
Standard ASME SA106
Size Range Various diameters and wall thicknesses as per ASME SA106
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property ASME SA106 Grade B Requirement ASME SA106 Grade C Requirement
Tensile Strength ≥485 MPa (70,000 psi) ≥485 MPa (70,000 psi)
Yield Strength ≥240 MPa (35,000 psi) ≥310 MPa (45,000 psi)
Elongation ≥20% in 50 mm (2 in) ≥20% in 50 mm (2 in)
Hardness Varies depending on heat treatment Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%) for ASME SA106 Grades
Carbon 0.29 - 0.36
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.35

5. Product Uses:

  • Boiler Tubes: Utilized in high-pressure boilers for steam generation.
  • Superheater Tubes: Employed in the superheater sections of steam power plants.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Pressure Vessels: Ideal for construction of high-pressure vessels and reactors.

6. Product Grade Standards:

  • ASME SA106: This standard specifies the requirements for seamless carbon steel pipes for high-temperature service, including Grades B and C.

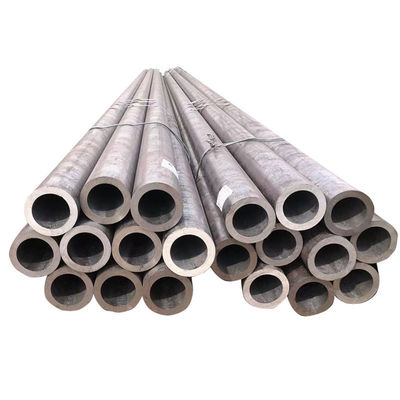

Product Image

ASME SA106b SA106c High Pressure Boiler Steel Pipe Tube / Cs Smls Pipe 0

ASME SA106b SA106c High Pressure Boiler Steel Pipe Tube / Cs Smls Pipe 1ASME SA106b SA106c High Pressure Boiler Steel Pipe Tube / Cs Smls Pipe 2

Company Profile

ASME SA106b SA106c High Pressure Boiler Steel Pipe Tube / Cs Smls Pipe 3

Factory Tour

ASME SA106b SA106c High Pressure Boiler Steel Pipe Tube / Cs Smls Pipe 4

team introduction

ASME SA106b SA106c High Pressure Boiler Steel Pipe Tube / Cs Smls Pipe 5

Applications

ASME SA106b SA106c High Pressure Boiler Steel Pipe Tube / Cs Smls Pipe 6
