ASTM A106B A106C High Pressure Boiler Steel Pipe Seamless Astm Carbon Steel Pipe

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASTM A106B A106C
Document
Product Brochure PDF
Name:
High Pressure Boiler Steel Pipe
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM A106B A106C
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

a106c high pressure boiler steel pipe

,

a106b astm carbon steel pipe

,

a106b high pressure boiler steel pipe

Product Description

ASTM A106 Grade B and Grade C High Pressure Seamless Boiler Steel Tubes

1. Product Description: ASTM A106 Grade B and Grade C High Pressure Seamless Boiler Steel Tubes are engineered for use in high-pressure boiler systems where reliability and safety are paramount. These tubes are manufactured from carbon steel and are seamless, providing uniform wall thickness and superior mechanical properties. The distinction between Grade B and Grade C lies in their respective mechanical property requirements, with Grade C offering higher strength for more demanding applications.

2. Product Parameters:

Parameter Description
Grades ASTM A106 Grade B and Grade C
Material Carbon Steel (Seamless)
Standard ASTM A106
Size Range Various diameters and wall thicknesses as per ASTM A106
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property ASTM A106 Grade B Requirement ASTM A106 Grade C Requirement
Tensile Strength ≥485 MPa (70,000 psi) ≥485 MPa (70,000 psi)
Yield Strength ≥240 MPa (35,000 psi) ≥310 MPa (45,000 psi)
Elongation ≥20% in 50 mm (2 in) ≥20% in 50 mm (2 in)
Hardness Varies depending on heat treatment Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%) for ASTM A106 Grades
Carbon 0.29 - 0.36
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.35

5. Product Uses:

  • Boiler Tubes: Utilized in high-pressure boilers for steam generation.
  • Superheater Tubes: Employed in the superheater sections of steam power plants.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Pressure Vessels: Ideal for construction of high-pressure vessels and reactors.

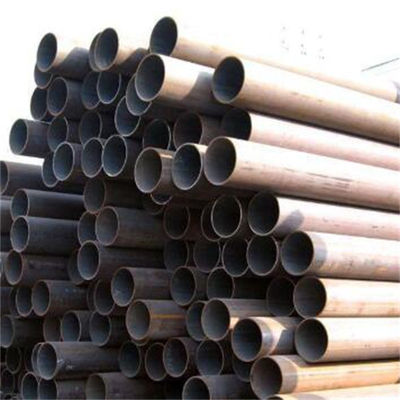

Product Image

ASTM A106B A106C High Pressure Boiler Steel Pipe Seamless Astm Carbon Steel Pipe 0

ASTM A106B A106C High Pressure Boiler Steel Pipe Seamless Astm Carbon Steel Pipe 1ASTM A106B A106C High Pressure Boiler Steel Pipe Seamless Astm Carbon Steel Pipe 2

Company Profile

ASTM A106B A106C High Pressure Boiler Steel Pipe Seamless Astm Carbon Steel Pipe 3

Factory Tour

ASTM A106B A106C High Pressure Boiler Steel Pipe Seamless Astm Carbon Steel Pipe 4

team introduction

ASTM A106B A106C High Pressure Boiler Steel Pipe Seamless Astm Carbon Steel Pipe 5

Applications

ASTM A106B A106C High Pressure Boiler Steel Pipe Seamless Astm Carbon Steel Pipe 6
