ASTM A178 A179 A192 High Pressure Boiler Steel Pipe Carbon Steel Cold Drawn

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
ASTM A178 A179 A192
Document
Product Brochure PDF
Name:
High Pressure Boiler Steel Pipe
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
ASTM A178 A179 A192
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

a178 boiler tube suppliers

,

a178 high pressure boiler steel pipe

,

a179 boiler tube suppliers

Product Description

ASTM A178 A179 A192 Seamless Carbon Steel Boiler Steel Tubes/Pipes

1. Product Description: ASTM A178, A179, and A192 Seamless Carbon Steel Boiler Steel Tubes/Pipes are premium-grade steel tubes designed for use in boiler and superheater applications where high strength and durability are required. These tubes are manufactured from carbon steel and are seamless, ensuring a uniform wall thickness and superior structural integrity. They are engineered to withstand the rigors of high-pressure and high-temperature environments.

2. Product Parameters:

Parameter Description
Grades ASTM A178, A179, A192
Material Seamless Carbon Steel
Standard ASTM A178, ASTM A179, ASTM A192
Size Range Various diameters and wall thicknesses as per ASTM standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property ASTM A178/A179/A192 Requirement
Tensile Strength ≥415 MPa (60,000 psi) for all grades
Yield Strength ≥240 MPa (35,000 psi) for A178, varies for A179 and A192 based on product forms
Elongation ≥20% in 50 mm (2 in) for A178, varies for A179 and A192 based on product forms
Hardness Varies depending on heat treatment and specific grade

4. Chemical Composition:

Element Typical Range (%) for ASTM A178/A179/A192
Carbon 0.15 - 0.30
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.35

5. Product Uses:

  • Boiler Tubes: Used in power and industrial boilers for steam generation.
  • Superheater Tubes: Employed in the superheater sections of steam power plants to increase steam temperature.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Pressure Vessels: Ideal for construction of high-pressure vessels and reactors in petrochemical and refining industries.

6. Product Grade Standards:

  • ASTM A178: Specifies requirements for electric-resistance-welded (ERW) carbon steel boiler and superheater tubes.
  • ASTM A179: Covers minimum-wall-thickness, seamless cold-drawn low-carbon steel boiler and superheater tubes.
  • ASTM A192: Specifies the requirements for seamless ferritic and austenitic-ferritic alloy-steel boiler, superheater, and heat-exchanger tubes.

Product Image

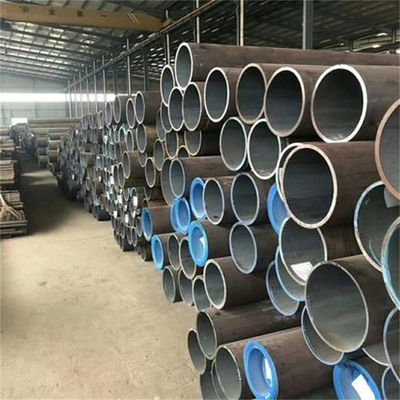

ASTM A178 A179 A192 High Pressure Boiler Steel Pipe Carbon Steel Cold Drawn 0

ASTM A178 A179 A192 High Pressure Boiler Steel Pipe Carbon Steel Cold Drawn 1ASTM A178 A179 A192 High Pressure Boiler Steel Pipe Carbon Steel Cold Drawn 2

Company Profile

ASTM A178 A179 A192 High Pressure Boiler Steel Pipe Carbon Steel Cold Drawn 3

Factory Tour

ASTM A178 A179 A192 High Pressure Boiler Steel Pipe Carbon Steel Cold Drawn 4

team introduction

ASTM A178 A179 A192 High Pressure Boiler Steel Pipe Carbon Steel Cold Drawn 5

Applications

ASTM A178 A179 A192 High Pressure Boiler Steel Pipe Carbon Steel Cold Drawn 6
Tags:
