High Pressure Seamless Boiler Tubes GB/T5310 15CrMoG 12Cr1MoVG

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Packing
Delivery Period: 7~30 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
cangzhou
Brand Name
BaoYang
Certification
CE & ISO
Model Number
GB/T5310 15CrMoG 12Cr1MoVG
Document
Product Brochure PDF
Name:
Seamless Carbon Steel Tube
Process:
Hot Rolled Cold Rolled Cold Drawn
Standards:
GB/T5310 15CrMoG 12Cr1MoVG
Material:
Carbon Steel
Wall Thickness:
1-20mm (0.04 Inch - 0.78 Inch)
Outer Diameter:
6-2500mm
Processing Service:
Bending, Punching, Cutting
Usage:
Pipeline Transport, Oil/Gas Drilling, Machinery Industry
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Export Packing
Delivery Time:
7~30 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Highlight:

seamless boiler tubes gb/t5310

,

boiler seamless steel tubes

,

gb/t5310 seamless steel tubes

Product Description

High Pressure Boiler Seamless Steel Pipe GB/T5310: 15CrMoG and 12Cr1MoVG Grades

1. Product Description: High Pressure Boiler Seamless Steel Pipe GB/T5310 is designed for use in high-pressure boiler systems that require exceptional strength and durability. These pipes are manufactured from specific heat-resistant steel alloys, namely 15CrMoG and 12Cr1MoVG, which offer superior performance in high-temperature and high-pressure environments typical of boiler applications.

2. Product Parameters:

Parameter Description
Grades 15CrMoG, 12Cr1MoVG
Material Heat-Resistant Carbon Steel (Seamless)
Standard GB/T5310
Size Range Various diameters and wall thicknesses as per GB/T5310
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property 15CrMoG Requirement 12Cr1MoVG Requirement
Tensile Strength ≥440 MPa (64,000 psi) ≥470 MPa (68,000 psi)
Yield Strength ≥295 MPa (42,500 psi) ≥340 MPa (49,300 psi)
Elongation ≥20% ≥20%
Hardness Varies depending on heat treatment

4. Chemical Composition:

Element 15CrMoG Range (%) 12Cr1MoVG Range (%)
Carbon 0.12 - 0.20 0.08 - 0.15
Chromium 0.40 - 0.70 -
Molybdenum 0.40 - 0.55 -
Manganese ≤ 0.40 ≤ 0.40
Phosphorus ≤ 0.025 ≤ 0.025
Sulfur ≤ 0.025 ≤ 0.025
Silicon 0.17 - 0.37 0.17 - 0.37

5. Product Uses:

  • Boiler Tubes: Used in high-pressure and high-temperature boiler systems for steam generation.
  • Superheater Tubes: Employed in the superheater sections of steam power plants.
  • Heat Exchangers: Suitable for use in heat exchangers operating under demanding conditions.
  • Pressure Vessels: Ideal for construction of high-pressure vessels and reactors in petrochemical and refining industries.

6. Product Grade Standards:

  • GB/T5310: This Chinese national standard specifies the technical requirements for high-pressure boiler seamless steel pipes, including grades 15CrMoG and 12Cr1MoVG.

Conclusion: High Pressure Boiler Seamless Steel Pipe GB/T5310, available in 15CrMoG and 12Cr1MoVG grades, is engineered for demanding applications in the power generation and petrochemical industries. These pipes offer a combination of strength, ductility, and corrosion resistance that make them suitable for high-pressure boiler systems. Adherence to the GB/T5310 standard ensures that these pipes meet the high-quality benchmarks necessary for critical applications.

Product Image

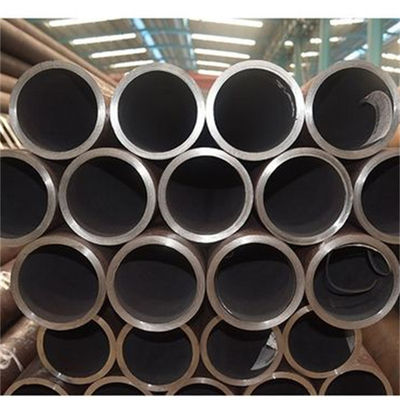

High Pressure Seamless Boiler Tubes GB/T5310 15CrMoG 12Cr1MoVG 0

High Pressure Seamless Boiler Tubes GB/T5310 15CrMoG 12Cr1MoVG 1High Pressure Seamless Boiler Tubes GB/T5310 15CrMoG 12Cr1MoVG 2

Company Profile

High Pressure Seamless Boiler Tubes GB/T5310 15CrMoG 12Cr1MoVG 3

Factory Tour

High Pressure Seamless Boiler Tubes GB/T5310 15CrMoG 12Cr1MoVG 4

team introduction

High Pressure Seamless Boiler Tubes GB/T5310 15CrMoG 12Cr1MoVG 5

Applications

High Pressure Seamless Boiler Tubes GB/T5310 15CrMoG 12Cr1MoVG 6
